Tybee Island Lighthouse

Tybee Island, Georgia

Location: Located on the southern side of the mouth of the Savannah River.

Latitude: N 32.0221

Longitude: W 80.8455

Year Constructed: 1867 (station established 1736). Active

Tower Height: 145 feet Focal Plane: 144 feet

Tapered octagonal brick tower attached to workroom; upper and lower portions painted black, center white. The 1st order Fresnel lens has been in use since 1867.

Historical Information:

Station Established: 1736

Year Current Tower(s) First Lit: 1867

Operational: Yes

Automated: Yes, 1972

Foundation Materials: Dressed stone/timber

Construction Materials: Brick

Tower Shape / Markings / Pattern: Octagonal brick tower; lower 50 feet black, upper part white; lantern, black

Height: 144'

Original Lens: Oil lamps, 1791; First Order, Fresnel, 1867

Characteristic: Fixed white

1736: The first lighthouse, a wooden tower, on Tybee Island, was built.

1741, August: The first light was washed away by a storm.

1742, March: The second lighthouse, made of stone and wood, was finished.

1768 The building of a third lighthouse was authorized.

1773: The third lighthouse was completed. This brick lighthouse with wooden stairs was 100 feet tall.

1790 The lighthouse and its property were ceded to the Federal Government.

1857: A 2nd order Fresnel lens was installed.

1861: Confederate troops set fire to the light to prevent its use by Federal troops during the Civil War. Union forces watched rebel troops at the nearby Fort Pulaski using the damaged tower.

1866: Anew brick and cast iron lighthouse was authorized. The lower sixty feet of the previous light was used as the foundation for the new 154 foot tall tower equipped with a 1st order Fresnel lens.

1867, October 1: The new light was first lit.

1933: The fuel to light the lamp in the lens was converted from kerosene to electricity.

1939: The USCG took over operations at the light until 1987.

1987: The USCG moved their operations to Cockspur Island.

2002: The Tybee Island Historical Society operates the lighthouse. The octagonal brick tower now rises 145 feet above ground and 144 feet above water, exhibiting a fixed white electric light of 70,000 candlepower from a first-order lens visible for 18 miles. The public is able to climb the 178 steps to the top of the light. Restoration of several buildings on the site is currently underway.

Tybee Light was under construction by the State of Georgia when that State became part of the Federal Union in 1788. The lighthouse was believed to have been ceded to the Federal Government in December 1791, although no records to substantiate this are available. In 1791 it appears that the tower was in commission under a keeper named Higgins and that spermaceti candles were being used in the lantern.

In 1838 the lighthouse was described as being "a fixed light, 15 lamps, 15-inch reflectors. Height of lantern above the sea, 100 feet. Height of tower from base to lantern, 95 feet."The light was refitted with 16-inch reflectors in 1841. In 1857 the light was renovated and fitted with a second-order lens. In 1862, during the Civil War, the interior of the tower and the lantern were destroyed by fire and the lens was removed. By 1865, the beacon had been relighted but not the main light.

In 1866, $20,000 and, in 1867, $34,443 more, was appropriated for rebuilding the tower and keeper’s dwelling. "The work was progressing satisfactorily" the Lighthouse Board reports "until the 18th of July 1866, when all labor was interrupted by panic among the workmen, caused by the arrival of a detachment of U. S. troops on the island, with cholera prevailing among them. The foreman in charge of the work, and four of the mechanics died of the epidemic and the work was suspended. The troops, while on the island, did much damage to the lighthouse establishment; an additional appropriation for this work is therefore desired."

Tybee Light had formerly been a second-class station but in reestablishing it, it was made into a first-order light, having a focal plane 150 feet above the sea. "When the rebels extinguished the light" the Lighthouse Board reported in 1867, "they attempted to destroy the old tower by fire, but without complete success, and it was found that a considerable part of it could be used. It was consequently torn down to the proper point, and the new masonry carried up from there to the requisite height." The new light was first exhibited October 1, 1867. The old tower had been finished in wood. The new one consisted of masonry and metal only and was completely fireproof.

In 1869 Tybee beacon was moved back 165 feet as the site was threatened "by washings of every gale." In 1871 gales, which had caused great damage along the southern coast, had so greatly damaged the lighthouse tower as to render it unsafe "and require the speedy erection of a new tower." The tower was reported cracked and liable to fall at any time. "Its great age (78 years), the frequent necessary repairs to it during the time it has been standing, and its total neglect during the war of the rebellion, render it impossible to properly repair the present tower.

The encroachment of the sea upon the southerly point of Tybee Island made it necessary to remove the front beacon, a skeleton frame structure, and set it back 400 feet on a new foundation in 1873. It had to be moved still farther back in 1879. Between 1871 and 1879 the recommendations for a new structure were repeated annually by the Lighthouse Board. In 1879 the Board reported "During the September 1878 gale, the tower vibrated to an alarming extent and the cracks, which had been pointed up, opened and extended." Nothing, however, was ever done to replace the structure and it stands today as it was rebuilt in 1867.

In 1884 the illuminating apparatus was changed to burn mineral instead of lard oil. The earthquake of August 1886 extended the cracks in the tower but not to any dangerous extent. The quake displaced the lens and broke the attachments to its upper ring.

This light station, the oldest in the South and second oldest in the nation, was established less than four years after the colony of Georgia was founded. The lower section of the lighthouse incorporates 60 ft of the 100 ft octagonal tower built in 1773. This is a remarkably well preserved light station with three keeper's houses and other historic buildings. The 1881 principal keeper's house has been restored recently and furnished as a museum. The second assistant keeper's house was built in 1861 as a Confederate Army barracks. The brick summer kitchen, built in 1812, is the oldest building preserved.

This is the fourth lighthouse for this light station with the first one completed in 1736. In 1861 during the War Between the States, the Confederate forces abandoned Tybee Island. Before retreating, the troops set fire to the 3rd lighthouse, burning the wooden stairs and landings.

In 1866, after the end of the war, a reconstruction crew began work on the lighthouse. Only the bottom sixty feet of the 1773 tower was salvageable, and on this base an additional 94 feet of tower was added, bringing the total height to 145 feet. A new, fireproof cast-iron staircase with 178 treads formed the spine of the lighthouse, and a first-order Fresnel lens was placed in the lantern room. The all-white structure displayed its fixed white light for the first time on October 1, 1867.

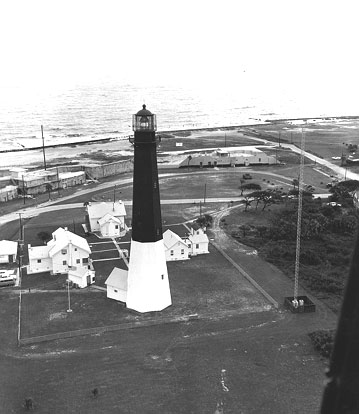

Historical USCG photo.

Tybee Island Lighthouse with 1970-1999 daymark
